Socket
[OBS Series] (10pcs/pack) |
PAT |
|---|
| How to use |
|---|
 |
| OBS with OAS |
| Dimension plan |
 |

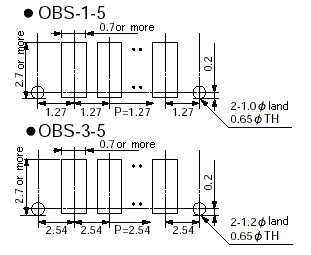

| Recommended pat layout |
 |
| Material | Body part | Brass |
|---|---|---|
| Contact part | Beryllium copper | |
| Resin part | PPS black (UL94V-0) | |
| Finsh | Body part | Sn plating over Ni |
| Contact part | Au plating over Ni | |
| Recommended through-hole diameter (phi mm) | 0.4 to 0.5 | |
| Rated current | 1A | |
| Insulation resistance | 500M ohm or more | |
| Contact resistance | 10m ohm or less | |
| Dielectric strength | OBS-1-5 | 500V AC, DC 1min |
| OBS-3-5 | 1000V AC, DC 1min | |
| Mating/unmating (times) | 100 times or more | |
| Mating/unmating forces (1 pin) | 30g or more | |
| Temperature range (degrees Celsius) | -40 to +125 | |
| Model No. | P (mm) | A (mm) | Max pin |
|---|---|---|---|
| OBS-1-5 | 1.27 | 52.07 | 40 |
| OBS-3-5 | 2.54 | 50.8 | 20 |
