Board To Board Connector
[OAS Series] (10pcs/pack) |
PAT |
|---|
| How to use |
|---|
 |
 |
| Dimension plan |
 |
| Material | Pin part | Phosphorus bronze |
|---|---|---|
| Resin part | PPS black (UL94V-0) | |
| Finish | Au plating over Ni | |
| Rated current | 2A | |
| Insulation resistance | 500M ohm or more | |
| Dielectric strength | OAS-1 series | 700V AC, DC 1min |
| OAS-3 series | 1000V AC, DC 1min | |
| Temperature range (degrees Celsius) | -40 to +125 | |

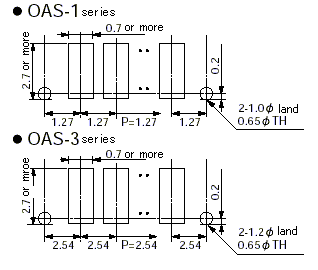

| Recommended pat layout |
|---|
 |
| Model No. | L (mm) | A (mm) | B (mm) | P (mm) | Max pin | H (mm) |
|---|---|---|---|---|---|---|
| OAS-1-2 | 2 | 0.635 | 50.8 | 1.27 | 40 | 7 |
| OAS-1-3 | 3 | 0.635 | 50.8 | 1.27 | 40 | 8 |
| OAS-1-4 | 4 | 0.635 | 50.8 | 1.27 | 40 | 9 |
| OAS-1-5 | 5 | 0.635 | 50.8 | 1.27 | 40 | 10 |
| OAS-3-2 | 2 | 1.27 | 50.8 | 2.54 | 20 | 7 |
| OAS-3-3 | 3 | 1.27 | 50.8 | 2.54 | 20 | 8 |
| OAS-3-4 | 4 | 1.27 | 50.8 | 2.54 | 20 | 9 |
| OAS-3-5 | 5 | 1.27 | 50.8 | 2.54 | 20 | 10 |
