Male Pin For Small Socket Pin
[PK Series] (100pcs/pack) |
|---|

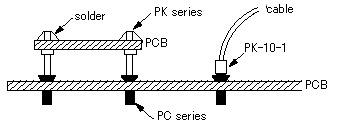

| EXAMPLE |
|---|
|
| Material | Brass |
|---|---|
| Finish | Au plating over Ni |
 |
 |
 |
| PK-1-1 to PK-2-2 PK-4-1 to PK-6-2 |
PK-3-1 to PK-3-3 | PK-10-1 |
| Model No. | A (phi mm) | B (phi mm) | C (phi mm) | L (mm) | Recommended through-hole diameter (mm) | Applicabe socket pin |
|---|---|---|---|---|---|---|
| PK-1-1 | 0.3 | 0.45 | 0.85 | 3 | 0.5 | PC-11 |
| PK-2-1 | 0.45 | 0.45 | 0.85 | 3 | 0.5 | PC-23, 10 |
| PK-2-2 | 0.45 | 0.45 | 0.85 | 6 | 0.5 | PC-23, 10 |
| PK-3-1 | 3 | 0.8 | PC-23, 10 | |||
| PK-3-2 | 5 | 0.8 | PC-23, 10 | |||
| PK-3-3 | 10 | 0.8 | PC-23, 10 | |||
| PK-4-1 | 1.0 | 0.9 | 1.3 | 5 | 1.0 | PC-4 |
| PK-4-2 | 1.0 | 0.9 | 1.3 | 10 | 1.0 | PC-4 |
| PK-5-1 | 0.8 | 0.75 | 1.3 | 5 | 0.8 | PC-5 |
| PK-5-2 | 0.8 | 0.75 | 1.3 | 10 | 0.8 | PC-5 |
| PK-6-1 | 1.3 | 1.2 | 1.8 | 5 | 1.3 | PC-6 |
| PK-6-2 | 1.3 | 1.2 | 1.8 | 10 | 1.3 | PC-6 |
| PK-10-1 | Crimp cable | PC-23, 10 | ||||
