Guide Post For AA Series
[AAG Series] (10pcs/pack) |
|---|
|

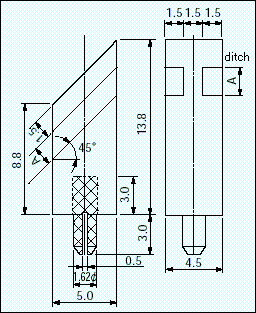

| EXAMPLE |
|---|
|
|
| Material | Resin part | PBT black (UL94V-0) |
|---|---|---|
| Pin part | Brass | |
| Finish | Sn plating | |
| Recommended through-hole diameter (phi mm) | 1.6 | |
| Temperature range (degrees Celsius) | -40 to +125 | |

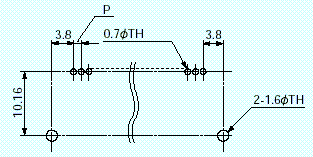

| Dimension plan for mounting |
|---|
 |
| Model No. | A(mm) | Recommended board thickness (mm) |
|---|---|---|
| AAG-0.6 | 0.7 | 0.6 |
| AAG-0.8 | 0.9 | 0.8 |
| AAG-1.0 | 1.1 | 1.0 |
| AAG-1.2 | 1.3 | 1.2 |
| AAG-1.6 | 1.7 | 1.6 |
