land diameter
|

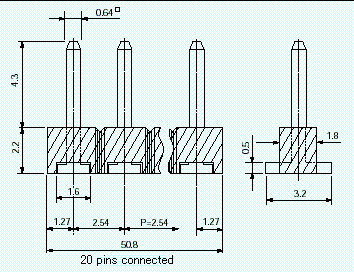

Wire Wrap Terminal
[HW-20P Series] (10pcs/pack) |
PAT |
|---|
|
|
| With JS-1 |
| Recommended land diameter |
|---|
|
| Material | Pin part | Brass |
|---|---|---|
| Resin part | Liquid crystal polymer black (UL94V-0) | |
| Finish | HW-20P-G | Au plating over Ni |
| HW-20P-S | Sn plating over Cu | |
| Rated current | 3A | |
| Insulation resistance | 500M ohm or more | |
| Dielectric strength | 1000V AC, DC 1min | |
| Temperature range (degrees Celsius) | -40 to +125 | |
 |
