TEST POINT (SMT)
Test Point For Auto-Insertion (2X1.25 Type)
[HK-3 Series]
PAT
Best use for small equipments.
In the case of reflowing by cream solder, recommended mounting pad layout should be more than 2x1.25 to strengthen the bonding.
Material
Brass
Finish
HK-3-G
Au plating over Ni
HK-3-S
Sn plating over Ni
Model No.
Quantity
HK-3-G-T

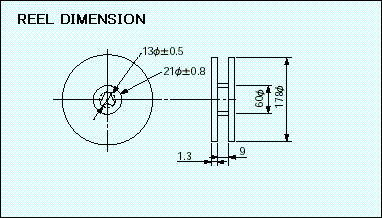

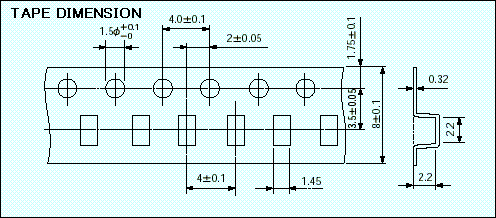

1500pcs per reel (taping)
HK-3-G
1000pcs per pack (bulk)
HK-3-S-T
1500pcs per reel (taping)
HK-3-S
1000pcs per pack (bulk)
Recommended land diameter
