Threaded Inserts [TH-1.6 Series]	PAT.P

Without adsorption cap

Chassis is mounted.

Stand-off type threaded inserts. This is mounted on PCB by inserting into through-hole.
Screws can be inserted from both component and solder side.
Taping type has adsorption cap for vacuum pick. It needs to be removed after reflow.
Mounter should have automatic recognition system.
Bulk type (100pcs/pack) is available.
TH-1.6-0.5-M3-B←put"B" for bulk.
Bulk type does not have adsorption cap.
Material: Brass
Finish: Sn plating over Ni
Current rating

TH-1.6-□-M2 : 20A

TH-1.6-□-M2.6 : 20A

TH-1.6-□-M3 : 30A

Tightening Torque

TH-1.6-□-M2	: 1.5kgf.cm (14.7N-cm) max.
TH-1.6-□-M2.6	: 3kgf.cm (29.4N-cm) max.
TH-1.6-□-M3 (X direction in dimension)	: 5kgf.cm (49N-cm) max.
TH-1.6-□-M3 (Y direction in dimension)	: 3kgf.cm (29.4N-cm) max.

Recommended PCB Thickness: 1.6mm
(other PCB thickness applicable)

Dimensions

TH-1.6-□-M2 (M2 Type Pitch=0.4mm AΦ=4.0 BΦ=2.5 in dimension)

P/N	H	Qty / Reel		P/N	H	Qty / Reel		P/N	H	Qty / Reel
TH-1.6-0.5-M2	0.5	450		TH-1.6-2.5-M2	2.5	350		TH-1.6-4.5-M2	4.5	250
TH-1.6-1.0-M2	1.0	450		TH-1.6-3.0-M2	3.0	350		TH-1.6-5.0-M2	5.0	250
TH-1.6-1.5-M2	1.5	450		TH-1.6-3.5-M2	3.5	350
TH-1.6-2.0-M2	2.0	450		TH-1.6-4.0-M2	4.0	250

TH-1.6-□-M2.6 (M2.6 Type Pitch=0.45mm AΦ=4.5 BΦ=3.1 in dimension)

P/N	H	Qty /Reel		P/N	H	Qty /Reel		P/N	H	Qty /Reel
TH-1.6-0.5-M2.6	0.5	450		TH-1.6-3.5-M2.6	3.5	350		TH-1.6-6.5-M2.6	6.5	300
TH-1.6-1.0-M2.6	1.0	450		TH-1.6-4.0-M2.6	4.0	250		TH-1.6-7.0-M2.6	7.0	300
TH-1.6-1.5-M2.6	1.5	450		TH-1.6-4.5-M2.6	4.5	250		TH-1.6-7.5-M2.6	7.5	300
TH-1.6-2.0-M2.6	2.0	450		TH-1.6-5.0-M2.6	5.0	250		TH-1.6-8.0-M2.6	8.0	300
TH-1.6-2.5-M2.6	2.5	350		TH-1.6-5.5-M2.6	5.5	350
TH-1.6-3.0-M2.6	3.0	350		TH-1.6-6.0-M2.6	6.0	350

TH-1.6-□-M3 (M3 Type Pitch=0.5mm AΦ=5.0 BΦ=3.5 in dimension)

P/N	H	Qty /Reel		P/N	H	Qty /Reel		P/N	H	Qty /Reel
TH-1.6-0.5-M3	0.5	450		TH-1.6-4.0-M3	4.0	250		TH-1.6-7.5-M3	7.5	300
TH-1.6-1.0-M3	1.0	450		TH-1.6-4.5-M3	4.5	250		TH-1.6-8.0-M3	8.0	300
TH-1.6-1.5-M3	1.5	450		TH-1.6-5.0-M3	5.0	250		TH-1.6-8.5-M3	8.5	250
TH-1.6-2.0-M3	2.0	450		TH-1.6-5.5-M3	5.5	350		TH-1.6-9.0-M3	9.0	250
TH-1.6-2.5-M3	2.5	350		TH-1.6-6.0-M3	6.0	350		TH-1.6-9.5-M3	9.5	250
TH-1.6-3.0-M3	3.0	350		TH-1.6-6.5-M3	6.5	300		TH-1.6-10.0-M3	10.0	250
TH-1.6-3.5-M3	3.5	350		TH-1.6-7.0-M3	7.0	300

Recommended
Pat Layout

Metal Mask Thickness
Recommended: 150 to 200μ

P/N	AΦ+0.1, -0	BΦ
TH-1.6-□-M2	2.7	5.0
TH-1.6-□-M2.6	3.3	5.5
TH-1.6-□-M3	3.7	6.0

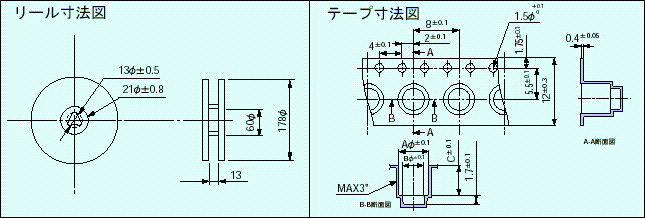

Tape & Reel Dimension(TH-1.6-0.5 to TH-1.6-5.0)

TH-1.6-0.5 to 2.0 : C=2.3
TH-1.6-2.5 to 3.5 : C=3.8
TH-1.6-4.0 to 5.0 : C=5.3
M2 Type : A=4.3 B=2.8
M2.6 Type : A=4.8 B=3.4
M3 Type : A=5.3 B=3.8

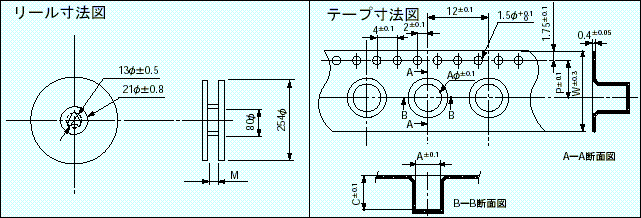

Tape & Reel Dimension (TH-1.6-5.5 to TH-1.6-10)

TH-1.6-5.5 to 6.0 : C=7.8 M=17.5
TH-1.6-6.5 to 7.5 : C=8.8 M=17.5
TH-1.6-7.0 to 8.0 : C=9.8 M=17.5
TH-1.6-8.5 to 7.5 : C=10.8 M=17.5
TH-1.6-9.0 to 8.0 : C=11.8 M=25.5
M2.6 Type : A=4.8 P=7.5 W=16
M3 Type (5.5 to 9.0) : A=5.3 P=7.5 W=16
M3 Type (9.5 to 10) : A=5.3 P=11.5 W=24
