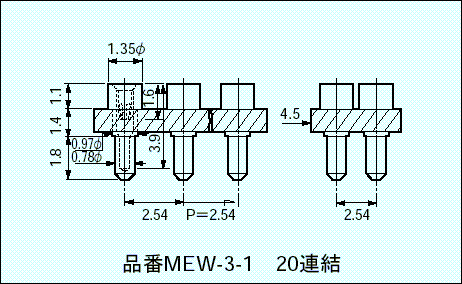

Board To Board Connector (2 Row Type)
[MEW-3-1] (10pcs/pack) |
|---|
|
|
| Material | Resin part | PCT black (UL94V-0) |
|---|---|---|
| Body part | Brass | |
| Contact part | Beryllium copper | |
| Finsh | Body part | Sn plating |
| Contact part | Au plating over Ni | |
| Recommended through-hole diameter (phi mm) | 0.9 | |
| Recommended male pin diameter (phi mm) | 0.35 to 0.47 | |
| Rated current | 1A | |
| Insulation resistance | 500M ohm or more | |
| Contact resistance | 10m ohm or less | |
| Dielectric strength | 1000V AC, DC 1min | |
| Mating/unmating (durability) | 100 times or more | |
| Mating/unmating forces (1 pin) | 30g or more | |
| Temperature range (degrees Celsius) | -40 to +125 | |
