BOARD TO BOARD CONNECTOR
(SUPER SMALL TYPE)



Board To Board Connector (2 Row Type)
[MBW-1 Series] (10pcs/pack)

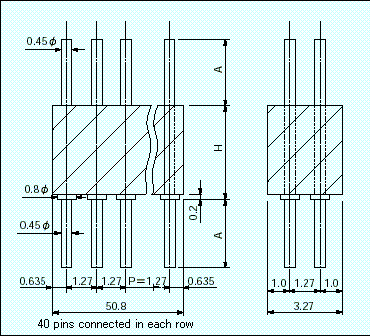

EXAMPLE
MaterialResin partPPS black (UL94V-0)
Pin partPhosphorus bronze
FinshPin partAu plating over Ni
Recommended
through-hole
diameter (phi mm)		0.6
Rated current2A
Insulation resistance500M ohm or more
Dielectric strength700V AC, DC 1min
Temperature range
(degrees Celsius)		-40 to +125

Model No.A
(mm)		H
(mm)
MBW-1-2.02.22.0
MBW-1-2.52.22.5
MBW-1-3.02.23.0
MBW-1-3.52.23.5
MBW-1-4.02.24.0
MBW-1-4.53.04.5
MBW-1-5.03.05.0
