Mac-Eight BOARD TO BOARD CONNECTOR

BOARD TO BOARD CONNECTOR
(SUPER SMALL TYPE)

Board To Board Connector (Angle Type) [MA Series] (10pcs/pack)

EXAMPLE

Use to connect PC boards in parallel.
Possible to mate/unmate PC boards from outside of cabinet.
1.27mm, 2.54mm pitch are availavle.

Material	Resin part	PCT black (UL94V-0)
Material	Pin part	Phosphorus bronze
Finsh	Pin part	Au plating over Ni
Recommended through-hole diameter (phi mm)	0.6
Rated current	2A
Insulation resistance	500M ohm or more
Dielectric strength	1000V AC, DC 1min (MA-3 series)
Dielectric strength	700V AC, DC 1min (MA-1 series)
Temperature range (degrees Celsius)	-40 to +125
Applicable socket pin	MG-1-1, MG-3-1

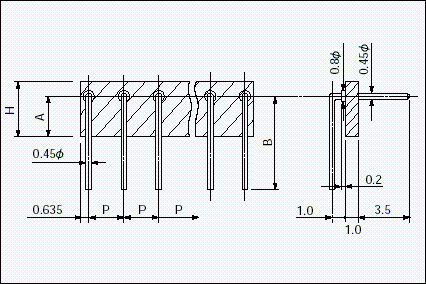

Model No.	A (mm)	B (mm)	H (mm)	P (mm)	Max pins
MA-1-1	1.0	3.2	2.0	1.27	40
MA-1-2	1.5	3.7	2.5	1.27	40
MA-1-3	2.0	4.2	3.0	1.27	40
MA-1-4	2.5	4.7	3.5	1.27	40
MA-1-5	3.0	5.2	4.0	1.27	40
MA-3-1	1.0	3.2	2.0	2.54	20
MA-3-2	1.5	3.7	2.5	2.54	20
MA-3-3	2.0	4.2	3.0	2.54	20
MA-3-4	2.5	4.7	3.5	2.54	20
MA-3-5	3.0	5.2	4.0	2.54	20

*H is combination size of MA and MG series.

HOW TO ORDER
MA-1-1-10P
Put # of pins if necessary.
