Mac-Eight BOARD TO BOARD CONNECTOR

BOARD TO BOARD CONNECTOR

Board To Board Connector [OY Series] (10pcs/pack)

EXAMPLE

20 pins connected at 2.54mm pitch.
2 colors are available (black or red).

Material	Resin part	PBT black or red (UL94V-0)
Material	Pin part	Brass
Finsh	Pin part	Au plating over Ni
Temperature range (degrees Celsius)	-40 to +125
Applicable socket	PD-1, PM-1

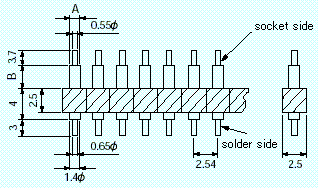

Model No.	A (phi mm)	B (mm)	H (mm)	Recommende through-hole diameter (phi mm)
OY-002	0.55	0	8.18	0.8
OY-003	1.2	1.82	10	0.8
OY-004	1.2	4.32	12.5	0.8
OY-005	1.2	6.82	15	0.8
OY-006	1.2	11.82	20	0.8

*H is the space between PCBs with PD-1 or PM-1.

HOW TO ORDER
OY-002-10P Red
Choose color (Black or Red).
Also put # of pins if necessary. (max 20 pins)
