BOARD TO BOARD CONNECTOR

EXAMPLE

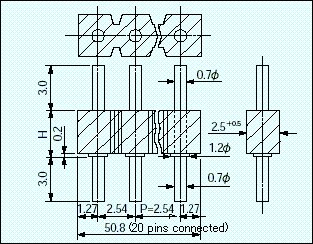

• 20 pins connected at 2.54mm pitch.
• Solder application.
• Use OW series for mate/unmate type.

Model No. H(mm) ML-1.2 1.2 ML-2 2 ML-3 3 ML-4 4 ML-5 5 ML-6 6 ML-7 7 ML-8 8 ML-9 9 ML-10 10 ML-12.5 12.5 ML-15 15 ML-17.5 17.5 ML-20 20 ML-25 25 ML-30 30

• HOW TO ORDER
  ML-10-15P
  Put # of pins if necessary. (max 20 pins)
